Melissa Tube Overdrive

Tube Overdrive pedal. Friedman Brown Eye amplifier sound (BE Channel) in compact pedal format! Gain, Tone and Volume controls, a Fat toggle switch that adds lower frequencies, a Sat. toggle switch (Saturation mode). ECC83/12AX7 or 6Н2П-ЕВ tubes (2 pcs) are used. Switchable heating 6Н2П/12AX7 by jumpers on the tube board. True bypass (relay).

Power supply: stabilized mains adapter 12VDC (1A).

To power the tube plates an internal DC-DC high voltage boost power converter is used (Nixie type).

The dimensions of the main PCB 84 x 100 mm.

Enclosure type: Hammond 1590BB2.

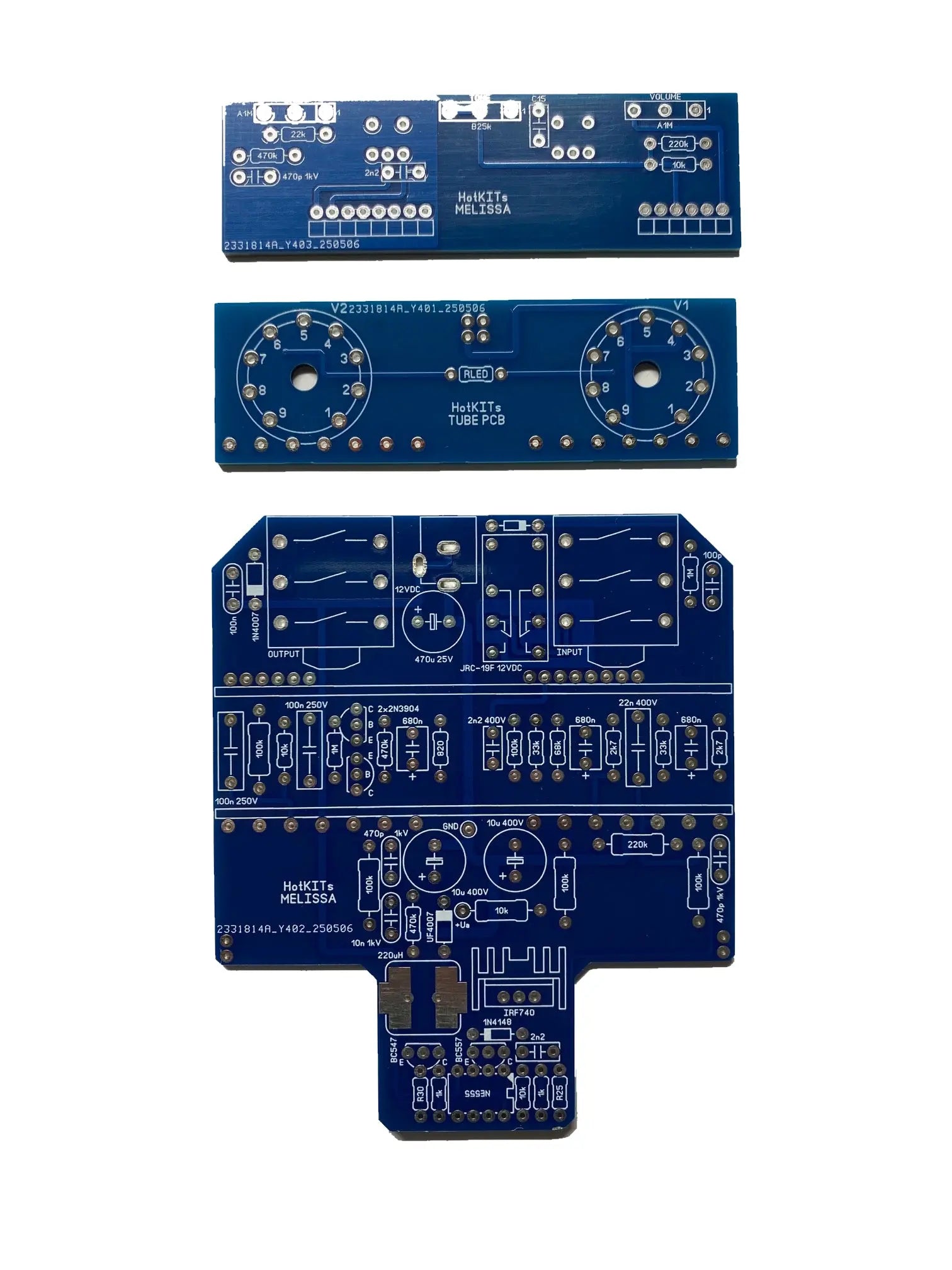

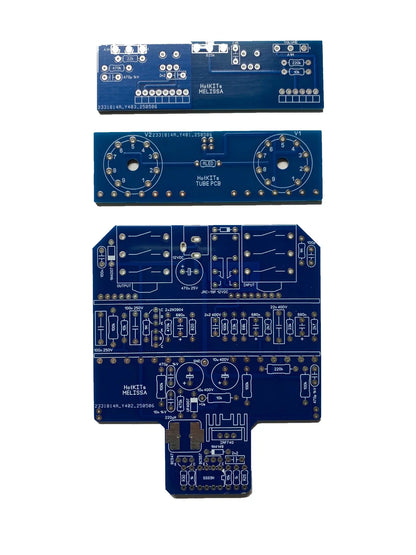

What's in the Bag:

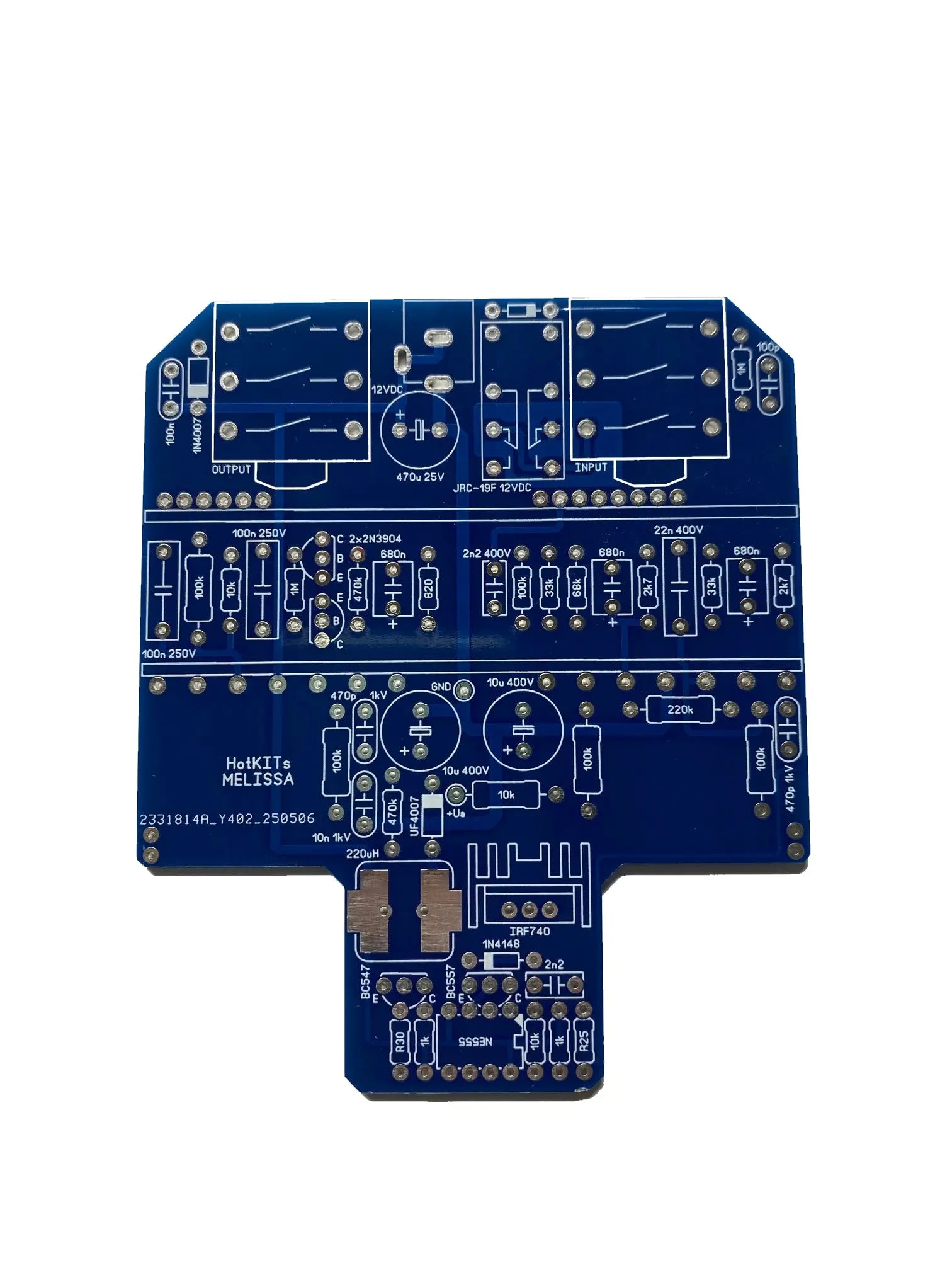

• Melissa Mainboard

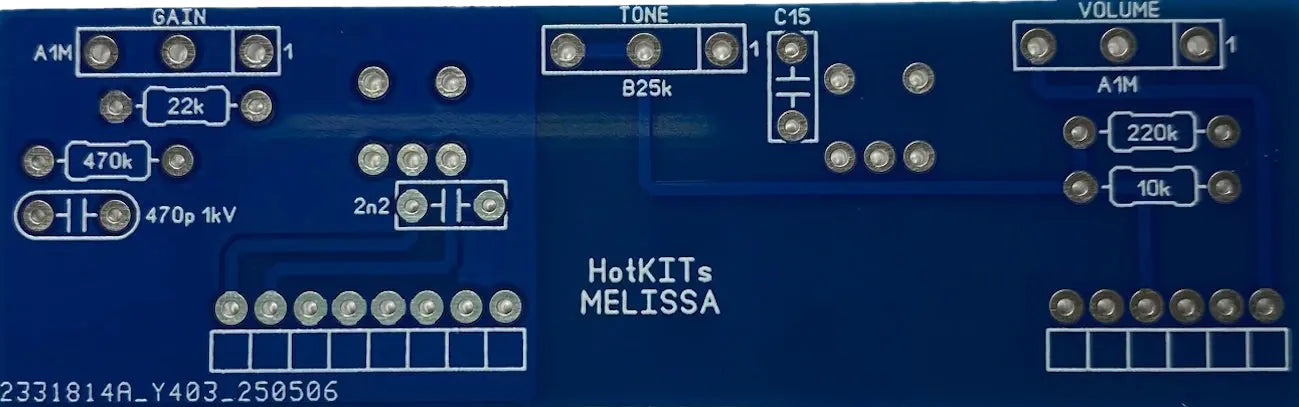

• Melissa Potsboard

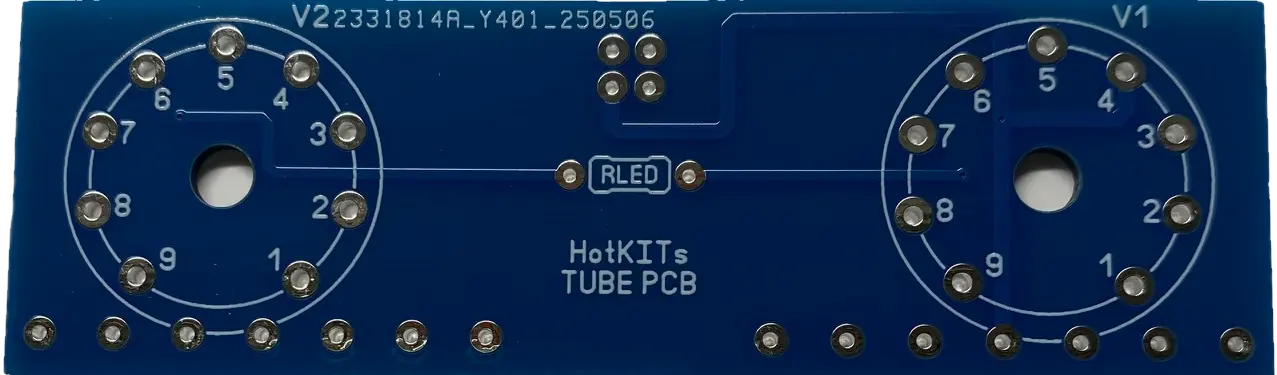

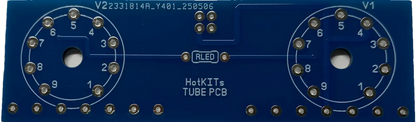

• Datura Tubeboard
